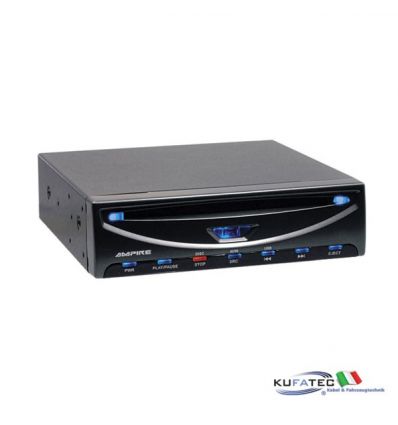

DVD player con interfaccia USB (3/4 DIN)

The new DVX102 is one of the best multimedia players on the market . The intergrated Disc Player accepts DVDs and CDs. They can be connected with up to 1TB In addition to the USB port sticks with up to 32GB or hard drives.
We provide all the necessary installation hardware and a mounting kit with DIN course . The DVX102 can be installed in a mounting angle of 0-30 ° . The shapely infrared remote control and an external IR receiver also make a hidden installation in the trunk possible.


FILE FORMATS DISC DRIVE

• DVD, USB, SVCD, MVCD , AAC , ASF, VCD1.0 and 2.0 , MPEG4, WMA, CD -DA , MP3, JPEG

USB CONNECTION

• Supports up to 32GB USB sticks and hard drives up to 1TB (FAT32 formatted)

EQUIPMENT

• Dolby Digital Audio Player
• subtitle
• Last position memory in disc mode ( not in AVI or MPEG4)
• Last Position Memory in USB mode (not with AVI and MPEG4)
• Video signal 1Vp -p
• Audio signal 6Vss ( 2.1 V RMS)
• blue night design

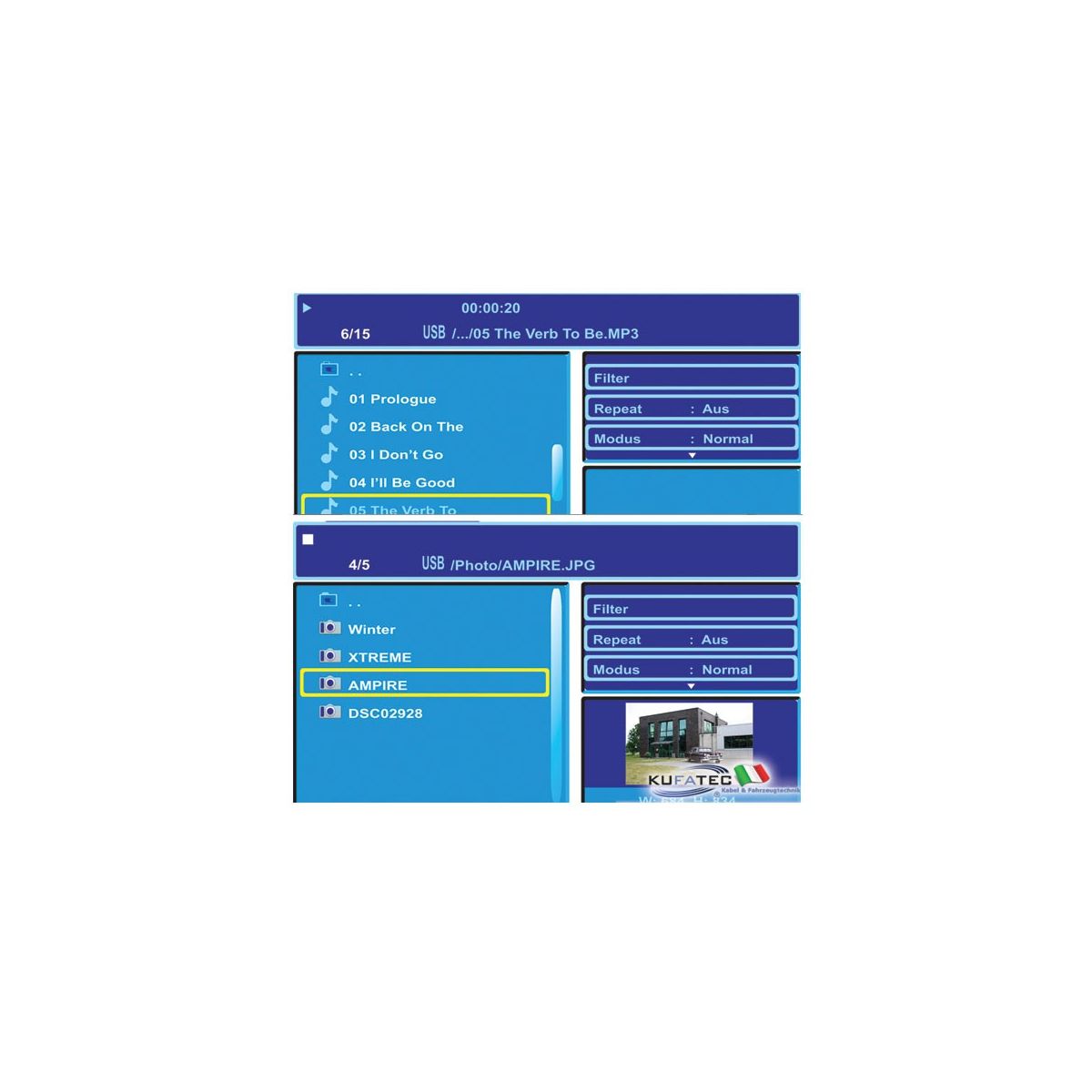

• German -screen operating menu
• Dual Infrared Receiver ( front panel and external recipients )

CONNECTIONS

• 1 AV input ( RCA)
• 1 AV output (RCA)
• 1 Coaxial Digital Output ( RCA)
• 1 USB port
• 1 infrared input for ext. IR receiver

DIMENSIONS

• Product 160 x 44 x 165mm
• Mounting depth 165mm
• Installation angle 0-30 Grad
• Weight 1.2 kg

PERFORMANCE

• Operating voltage 12 volts DC
• Power consumption 10.2 watts max.
• Power consumption with the ignition off 0 watts (0.0 amps )

SUPPLIED

• DVD player ( secured for transport )

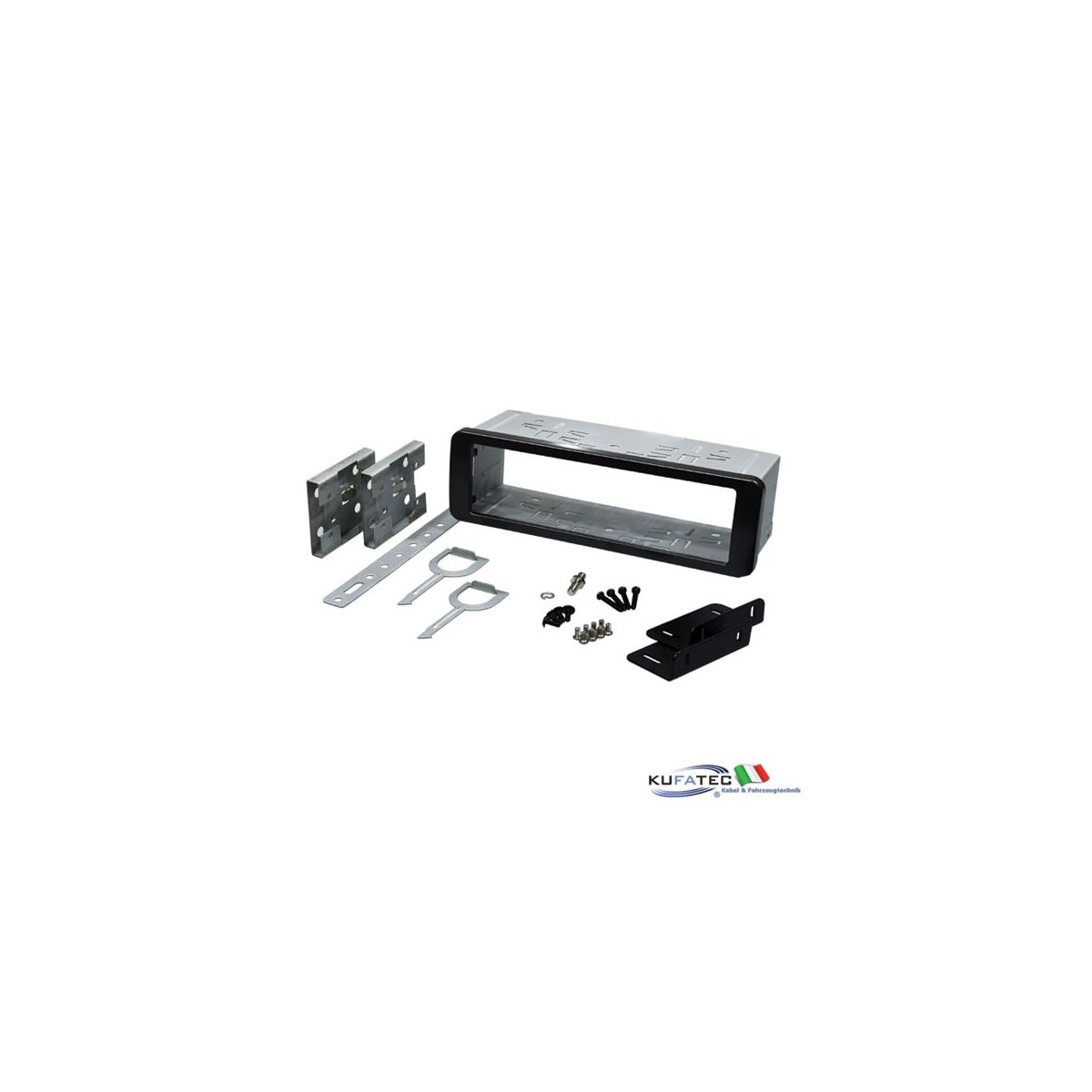

• DIN mounting accessories with mounting frame
• connection cable

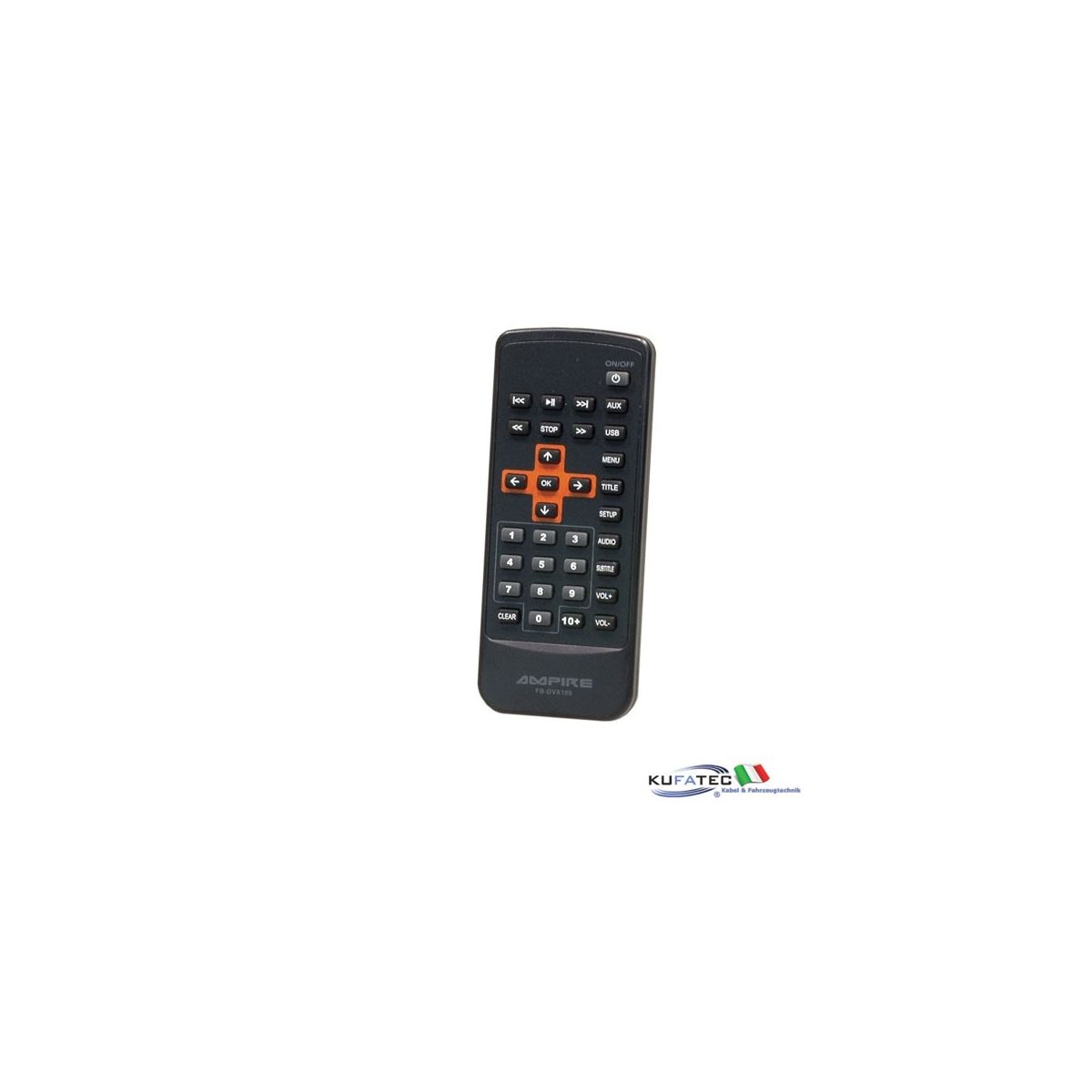

• IR remote control
• IR receiver
• German / English manual

CERTIFICATION

• E8 10R -03 1242
• RoHS Compliant

BATTERY REGULATION

• Batteries do not belong in household waste .
• The Battery Act applies in accordance with paragraph 1, sentence 1 2 Battery Law for batteries that are incorporated into other products or attached to other products. As a consumer, you are legally obliged to return used batteries. You can use your old batteries at public collection points in your community or anywhere else where batteries of this type are sold. You can return free of charge your batteries in the shipment. If you want to make use of the latter possibility , send your old batteries please feel free to our address ( freight collect shipments will be rejected ) .

These characters containing pollutants batteries

• Pb = battery / battery contains lead
• Cd = battery / battery contains cadmium
• Hg = battery / battery contains mercury

IMPORTANT NOTICE

• Please remove before installing the DVX102 , the marked screws of the transport safety . Otherwise, the device may be damaged.
